Product Description

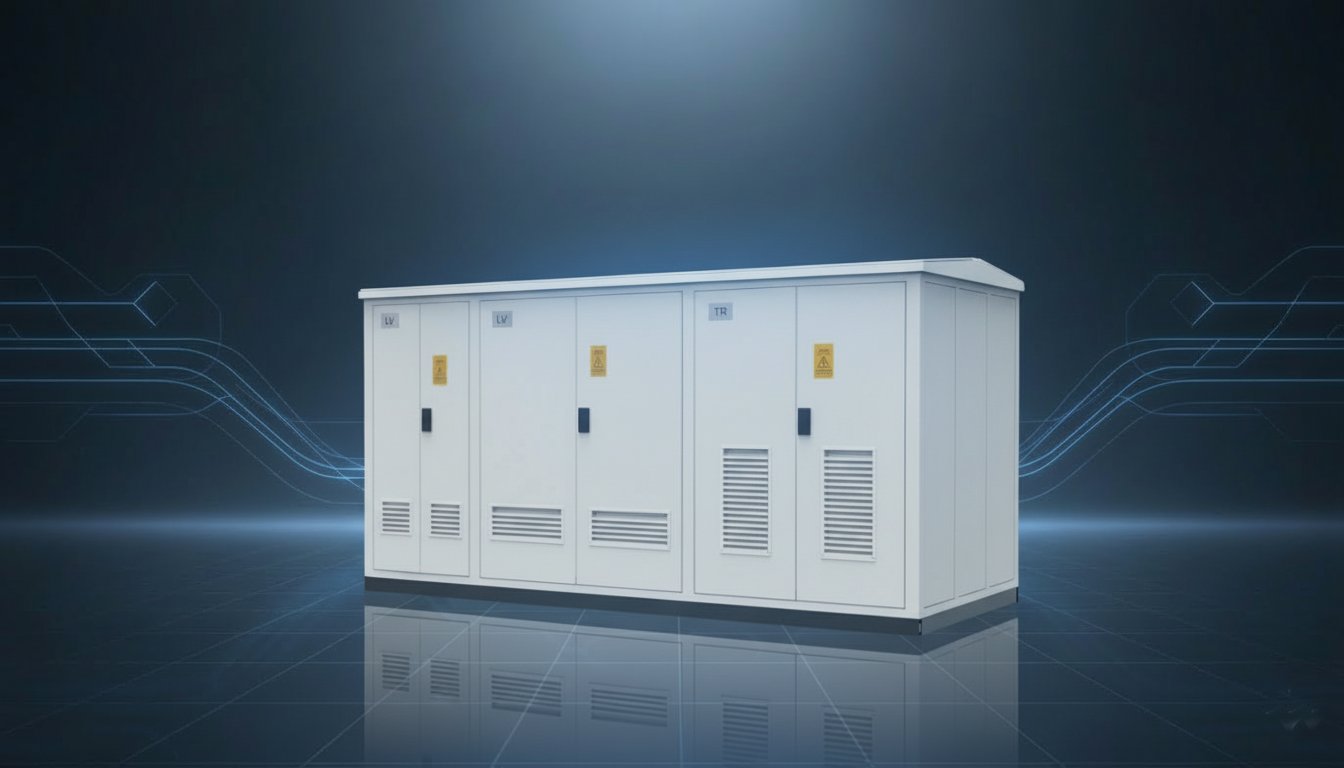

Monobloc Concrete Kiosk

Monobloc concrete kiosks are safe products designed for medium voltage systems up to 36 kV and low voltage systems, manufactured in accordance with relevant specifications and standards.

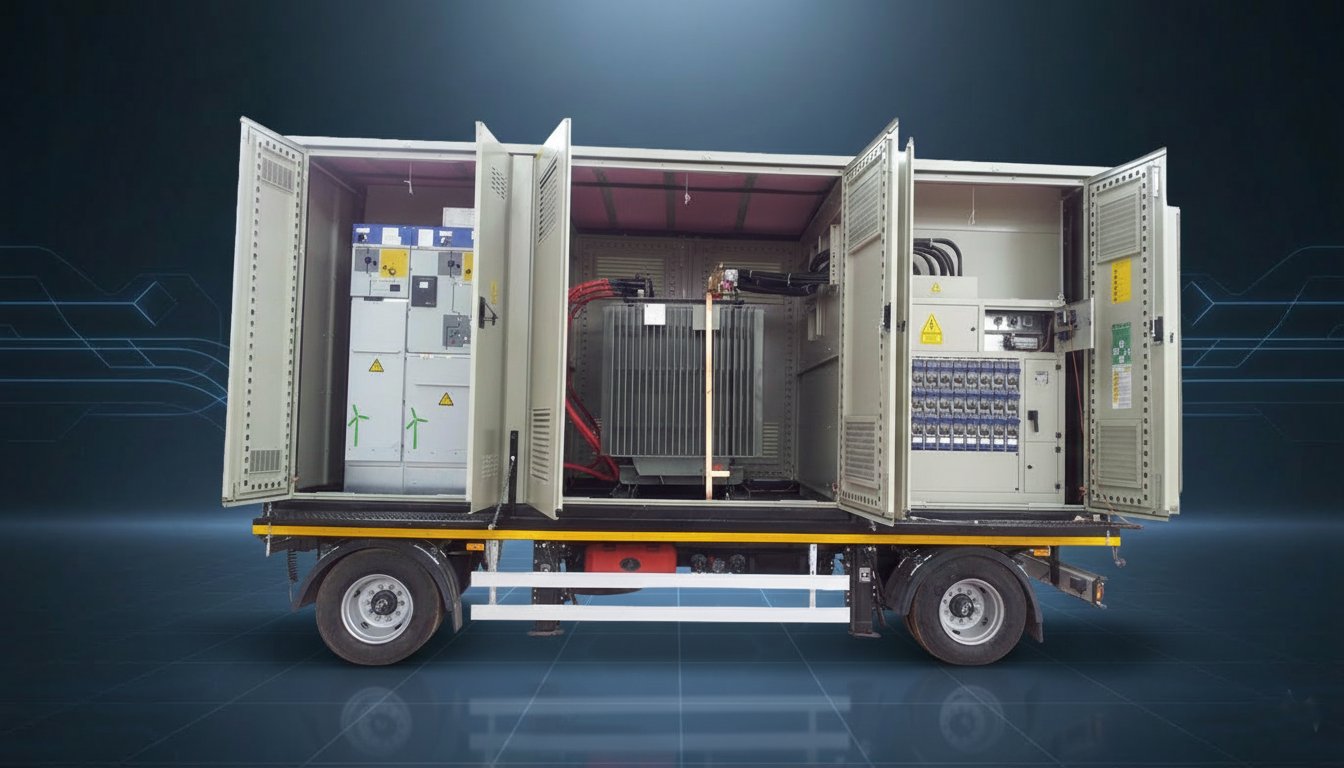

The kiosks are produced as single, two, or three‑compartment types. The exterior is coated with silicone‑based exterior paint. In the three‑compartment type, the MV switchgear, transformer, and LV distribution panel are located in separate compartments.

All kiosks are manufactured in accordance with TEDAŞ technical specifications and relevant IEC/TSE standards. Thanks to the long‑lasting prefabricated concrete structure, they are suitable for all climate and terrain conditions.

Key Features

Three‑Compartment Structure

MV switchgear, transformer and LV compartments are separate.

Waterproofing

Roof and floor protected with waterproofing material.

Galvanized Doors

Electrostatic powder‑coated galvanized sheet steel doors.

TEDAŞ Compliant

Fully compliant with TEDAŞ technical specifications.

Fast Installation

Installation within 1‑2 days thanks to prefabricated structure.

Custom Sizes

Manufacturing in standard and custom dimensions per customer request.

Technical Specifications

Technical Data

Technical Parameters – Monobloc Concrete Kiosk

Rated Voltage	10 kV / 36 kV
Frequency	50 Hz
Short‑Circuit Current	16 kA / 25 kA
Protection Class	IP 23 / IP 34
Standard	TS EN 62271-202
Material	Prefabricated Concrete
Compartment Type	Single / Two / Three Compartments
Installation Time	1‑2 Days
